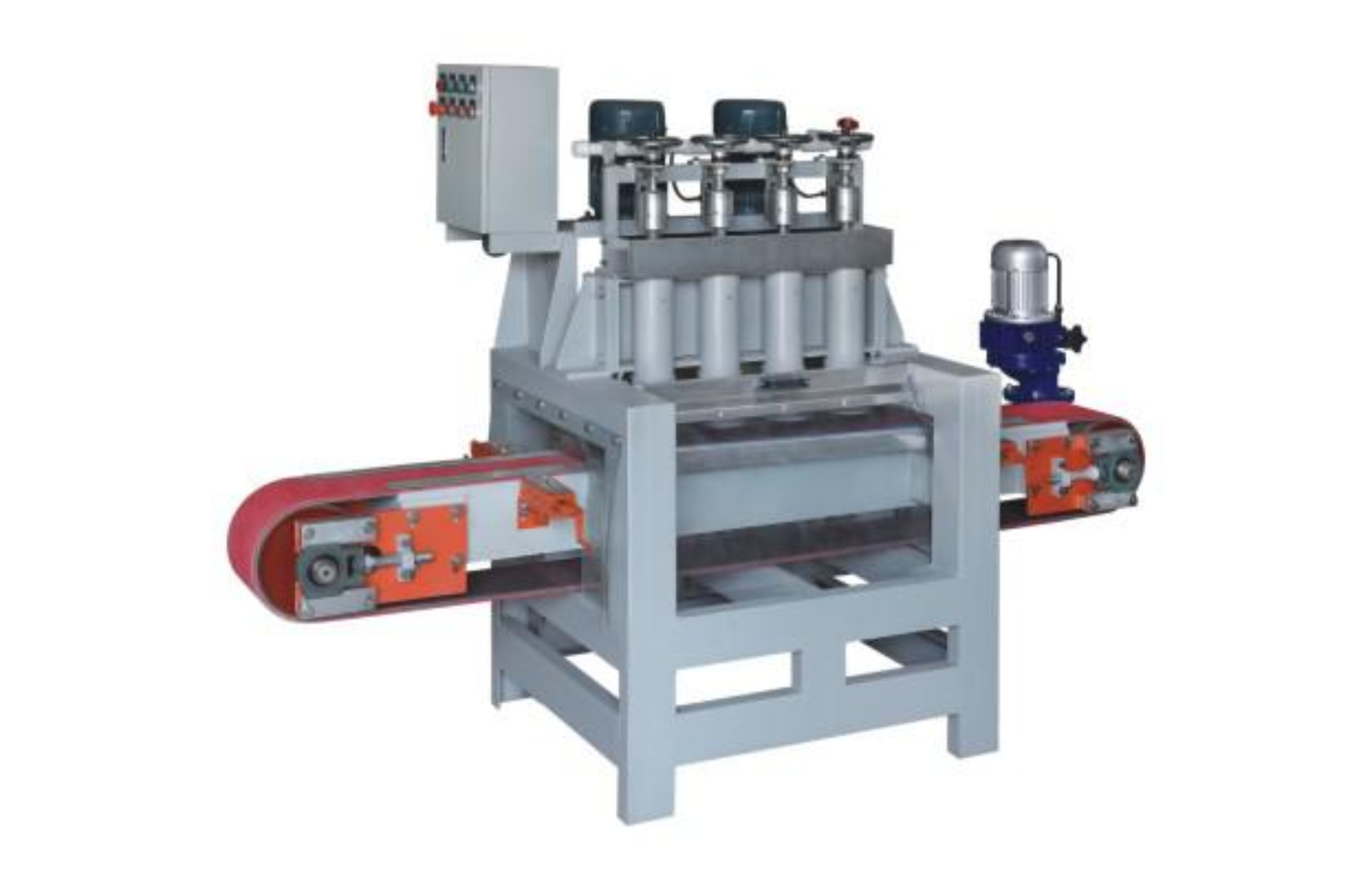

BPG-150D-400D Mosaic Calibrating Machine

Location：Home > Products
Mosaic Machine

infomation:

Full automatic calibration machines are suitable to apply for the calibrating of stone slab /tile/ mosaic.
* This machine adopts simple and practical grinding head structure
* Gantry structure
* Zero vibration, low noise
* High working precision
* High efficiency

Description

Parameter datas:

Model		BPG-150D	BPG-400D
Sprindle Head	pcs	4	2
Belt Width	mm	200	400
Calibration Pad Diameter	mm	Φ120-150	450
Max. Processing Width	mm	150	400
Max. Processing Thickness	mm	50	60
Belt Speed	m/min	0.5~6	1~6
Sprindle Motor Power	kW	4*2	11*2
Belt Motor Power	kW	0.75	3
Lifting Motor Power	kW		0.55*2
Total Power	kW	8.75	26.1
