80-100-120 Marble Gang saw

Location：Home > Products
Block Cutting Machine

infomation:

Description

Parameter datas:

Model		BBM-80/S800	BBM-100/S800	BBM-120/S800
Blades	pcs	80	100	120
Blades legth	mm	4400	4400	4400
Blades stroke	mm	800	800	800
Main motor power	kw	110	132	160
Max cutting block size	mm	320020002000	320025002000	320030002000
min.cutting thinkness	mm	16	16	16
Block trolley size	mm	3200*2050	3200*2050	3200*2050
Dimension	mm	1190050604960	1190055604960	1210052705100
Weight	kg	55000	62000	70000

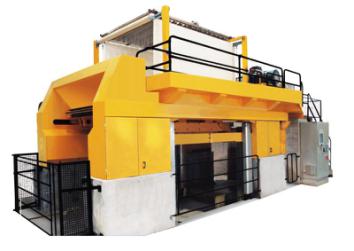

Picture:

Structure and Features:
(1) MOTOR: The motor can adopt high-efficiency energy-saving motor, can work in fully loaded condition for a long time.
(2) GUIDING: Adopts advanced saw frame guiding mechanism (V-type guiding rail), ensures the saw frame in a long-term stable running state. Guiding precision and movement stability is up to the international advanced standard. Adopts large-scale flying wheel to increase the running stability, save electricity, ensure high quality and efficiency.

(3) CONTROL SYSTEM: Adopts PLC control to make the motor run in a constant-power state. The work piece elevation speed can be automatically adjusted according to the stone material hardness.

The down feed [cutting speed] is controlled by electrically

(4) Saw Blade: Saw blade is tightened with a constant force by hydraulic tensioner.
(5) Bearing: The bearings are of the famous brand.

(6) Main material: Main structural material is of high quality to ensure a long service life and excellent performance (the same as those of Italian gang saws).Advanced stress analysis software is used to carry our calculations for the main parts to ensure the whole-machine max. working efficiency.

Our raw material is from German, Japan or most advanced domestic enterprises
(7) The output of 24 hours one day: It can cut about 400-500 square meters.

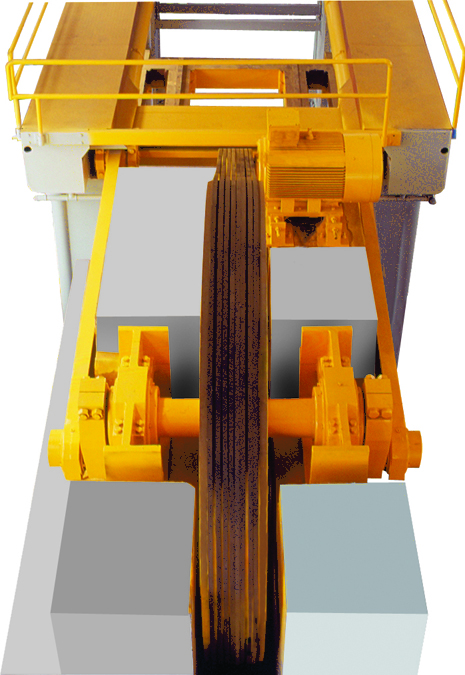

(8) You can see the following, there is a photo “double connecting-rod”, because in China, most producer make the Gang Saw with “single connecting-rod”,
