| Product Model | Products | |||||||

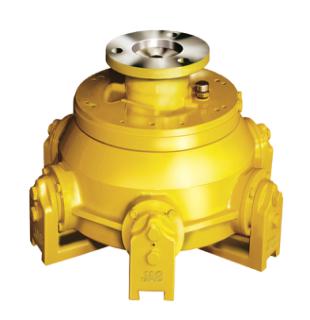

| B-QL | Six-claw Active Tangential Grinding Head | |||||||
| outer diameter | mm | 475 | ||||||
| claw number | pcs | 6 | ||||||
| max. height | mm | 280 | ||||||
| diameter of main shaft | mm | φ168 | ||||||
| diameter of second hole | mm | φ85 | ||||||
| diameter of inner hole | mm | φ18 | ||||||
| connect hole | mm | 3-φ18 | ||||||
| center distance of flange | mm | φ250 | ||||||
| flange connect hole | 4-M10 | |||||||
| outer package | mm | 530*500*350 | ||||||
| prodcution time | day | 20-25 | ||||||
